Cibinong

How to zoom ? Charts are composed of an overview very useful to make horizontal zoom. Click on the overview, maintain the click and drag the mouse to the left or right side.
In order to make a fully zoom out, click on the overview from the leftest point, maintain the click and drag until the rightest point.
You can also make a zoom action directly on the chart.

Observed/predicted number of observations (over one sliding year)	Delayed Time latency (over one sliding week)
This percentage corresponds to the ratio number of complete observations with respect to the number of predicted observations for a fixed elevation cut off angle of 3°. It is computed from Rinex3 Daily/30s Anubis quality files for GPS, GLO, GAL, BDS and QZS (when available) constellations since 2020-11-17, and from Rinex2 Daily/30s files for GPS, GLO, GAL, SBAS constellations before this date.	Latencies based on the provision of the Rinex 3.02, 3.03 and 3.04 data every fifteen minutes
No data available. Day of the year (Day 1 to 365)	No data available. Day of the year (Day J-6 to J-1)

Acronym :	CIBG
Name :	Cibinong
Approximate geographic position :	Latitude (°) : -6.49036 Longitude (°) : 106.84917 Elevation (m) : 169.10 Localisation : Indonesia
Host organisation :	Badan Informasi Geospasial
Domes number :	23101M005
Brand :	TRIMBLE
Model :	ALLOY
Firmware :	Version : 6.16 Installation date : 2024-03-04
Antenna :	Serial number : 726340 Type : LEIAR25.R4 NONE Height (m) : 0.0000
Constellation(s) :	BEIDOU GALILEO GLONASS GPS IRNSS QZSS SBAS
Other network participation :	REGINA REGINA-CNES REGINA-IGN IGS EUREF GRC-MS
	RGP CNES-NTMF ESSP EPOS LEGOS SHOM SONEL
	TIGA RENAG IGS-MGEX

Sampling	15MN_1S	1H_1S	1H_30S	1D_1S	1D_30S
RAW
RINEX2.11
RINEX3.02
RINEX3.03
RINEX3.04
RINEXB

Languages

You are here

Station : CIBG

Pictures

Sampling

Delayed Time Statistics

Observed/predicted number of observations

Delayed Time latency

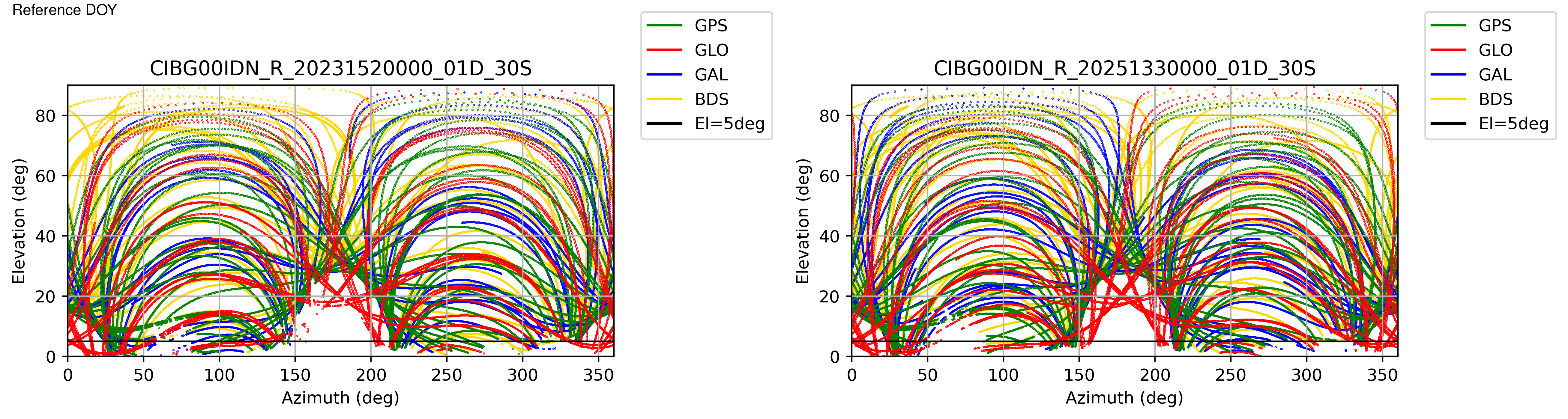

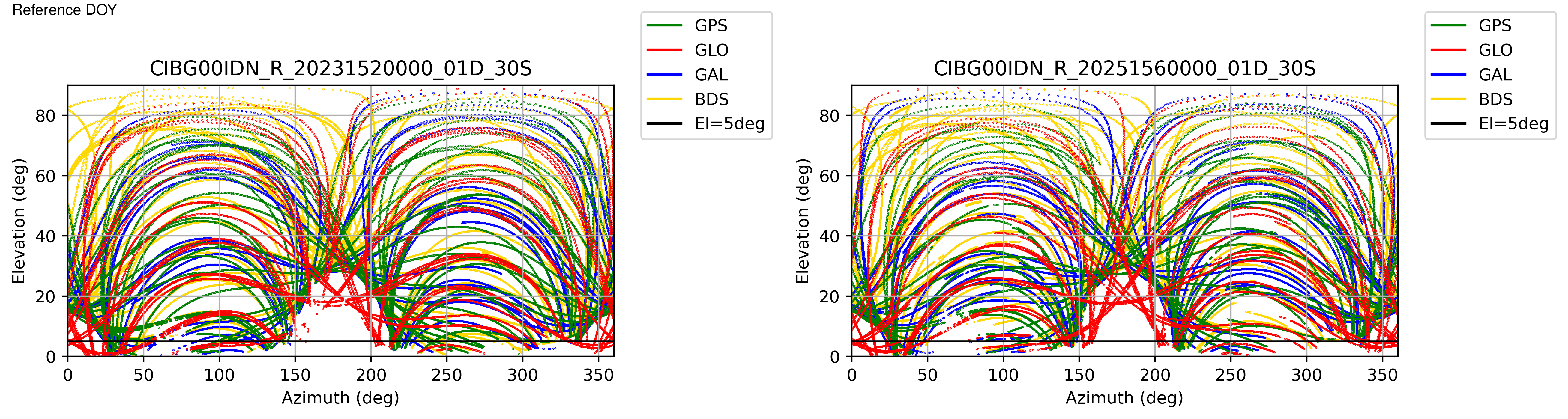

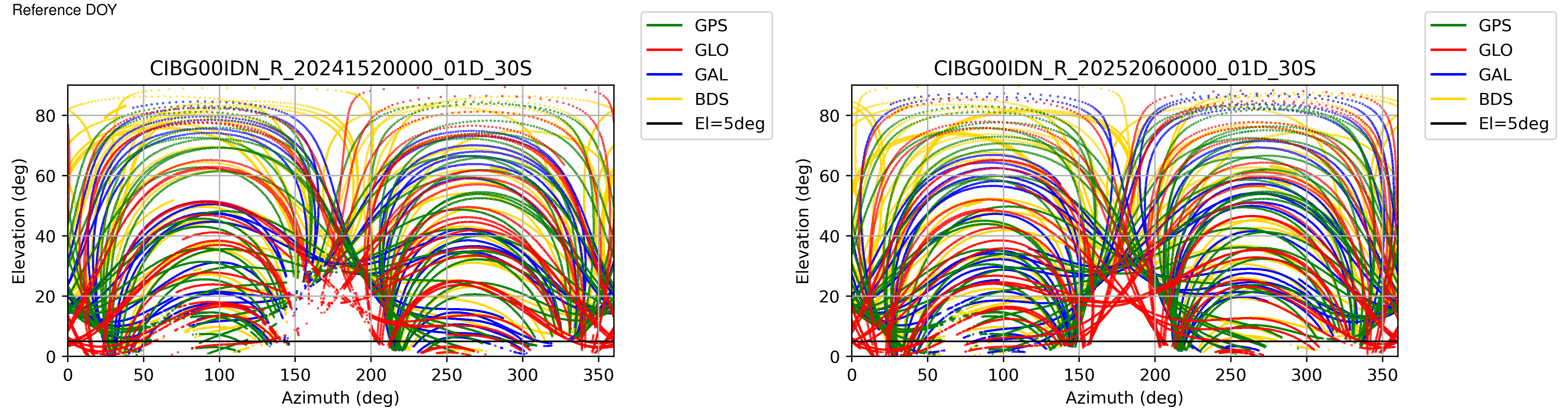

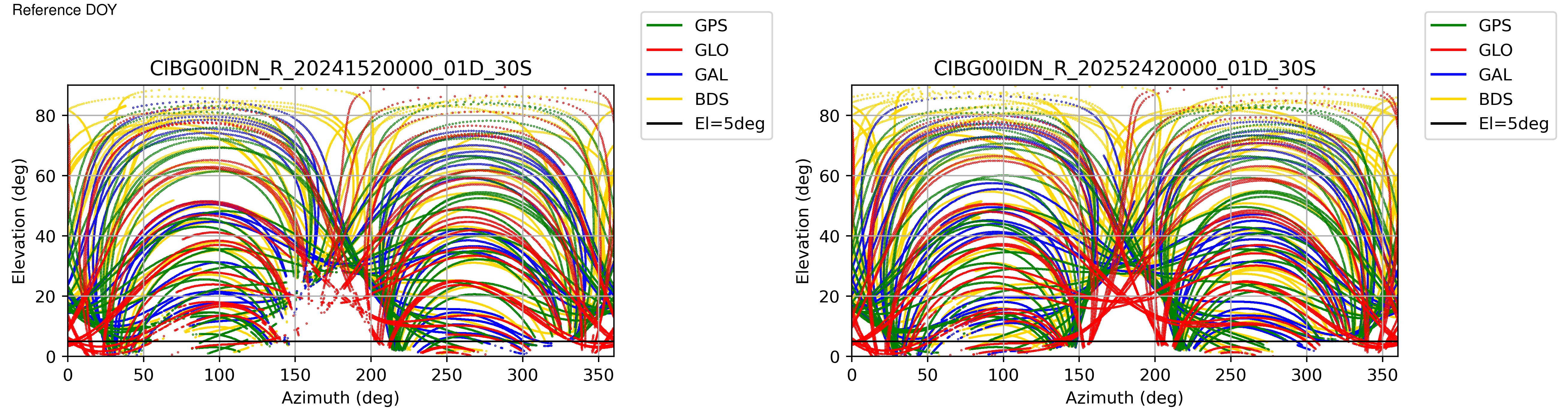

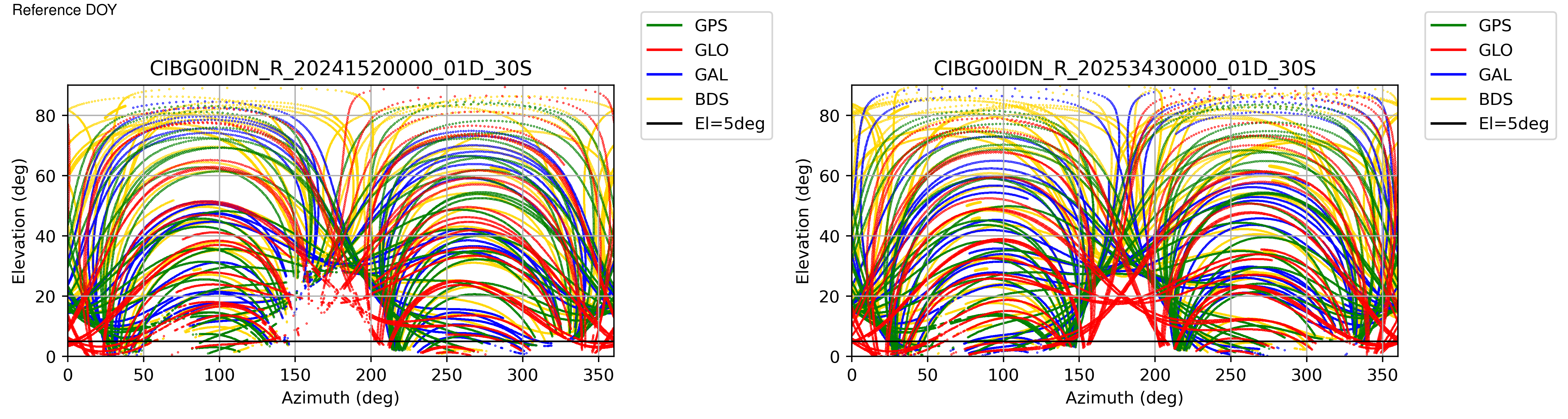

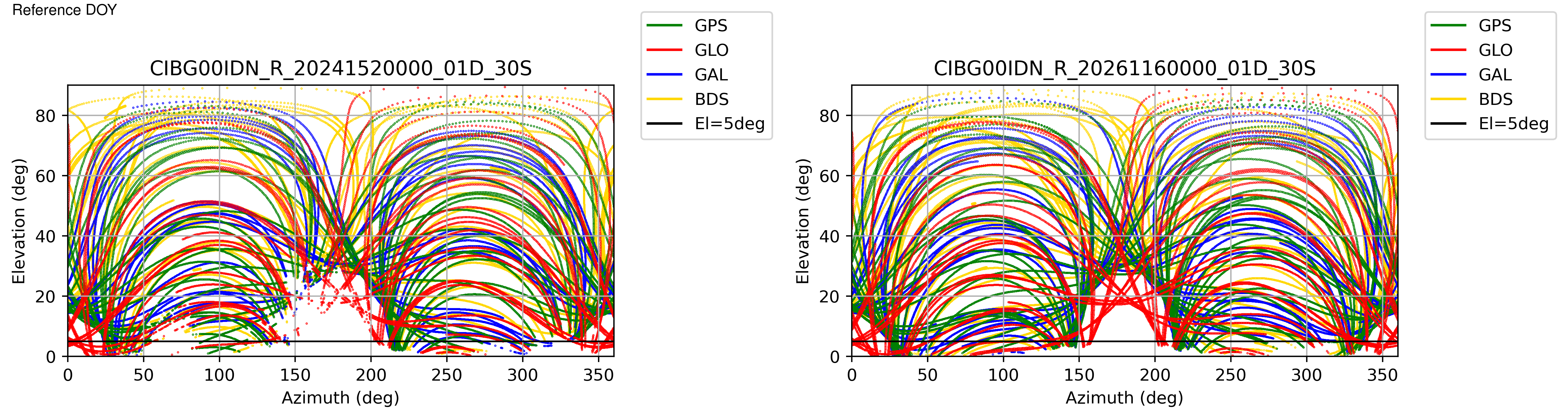

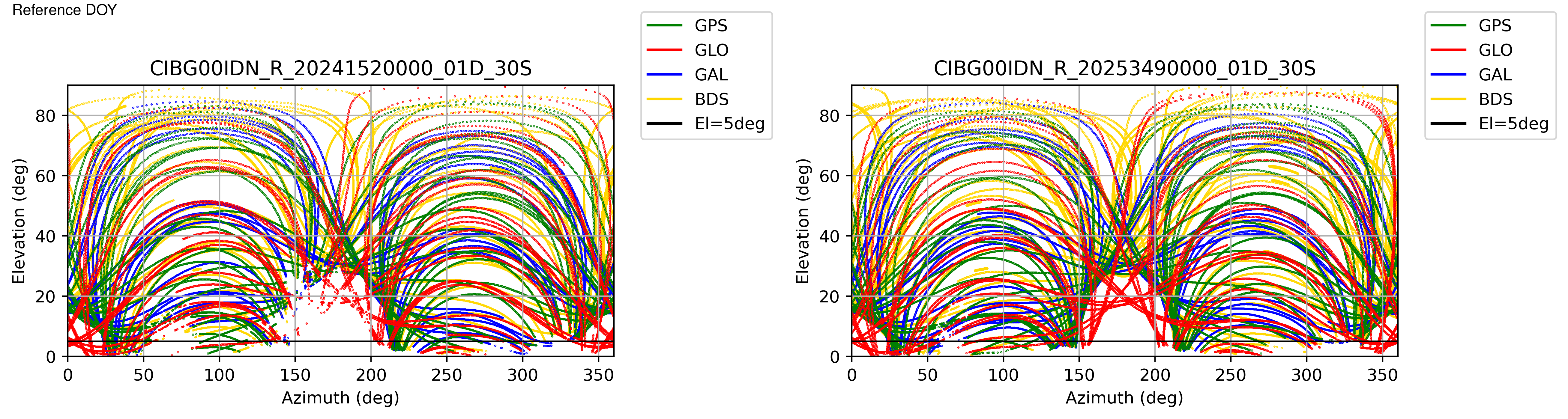

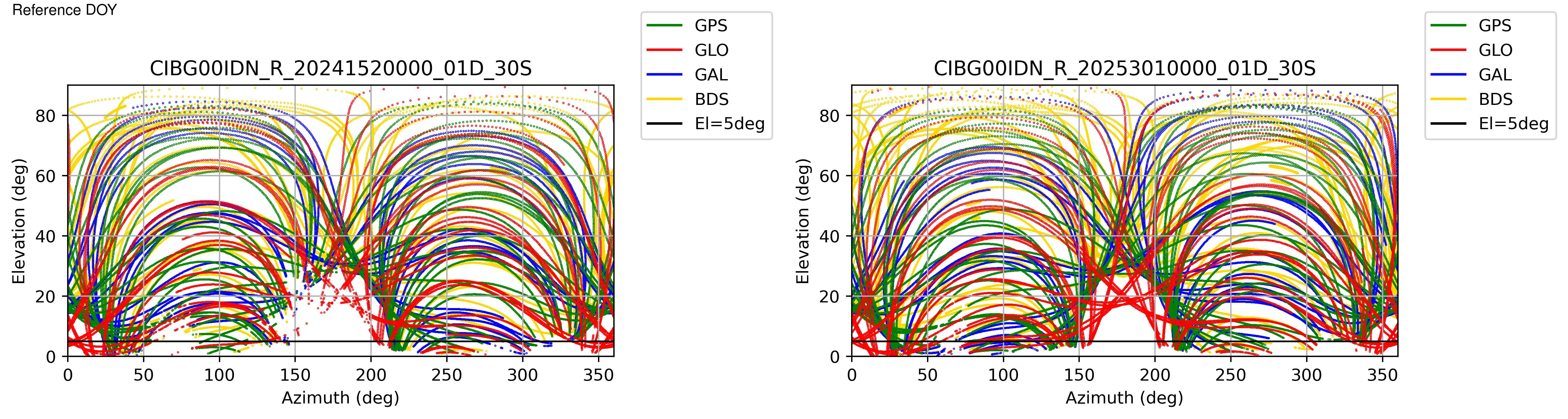

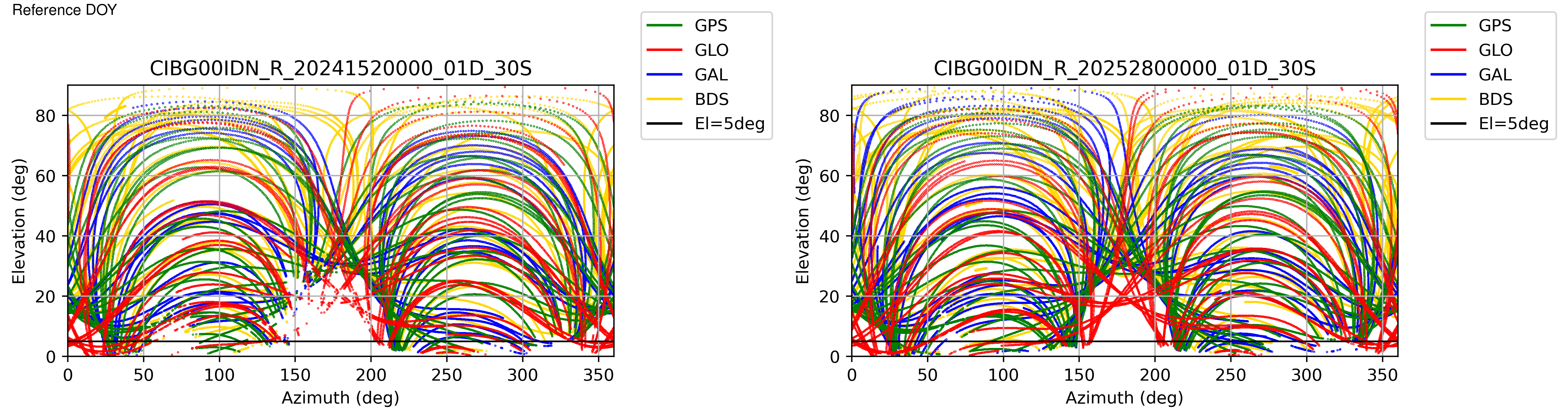

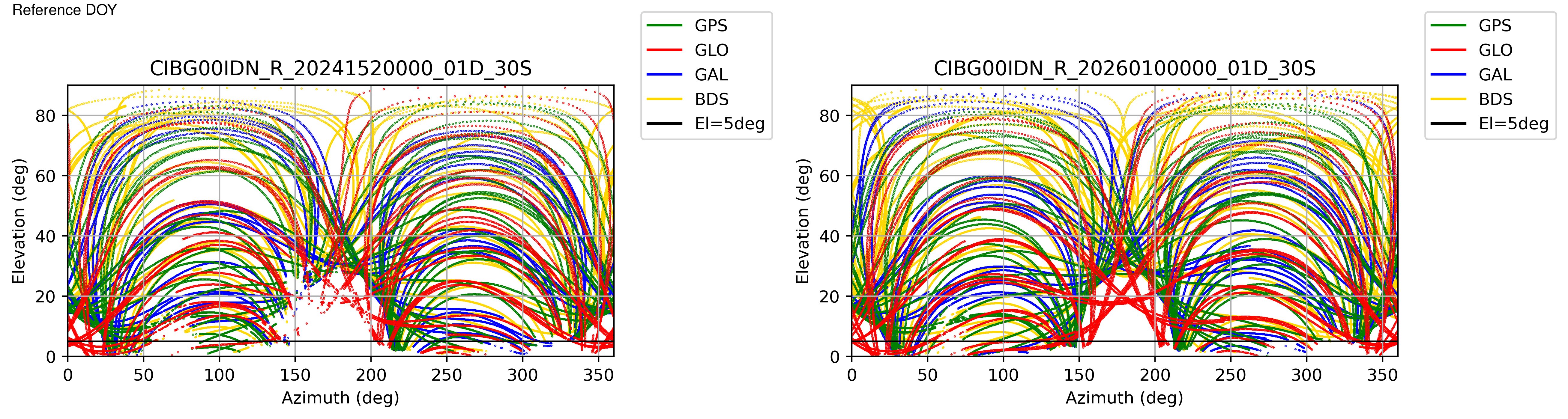

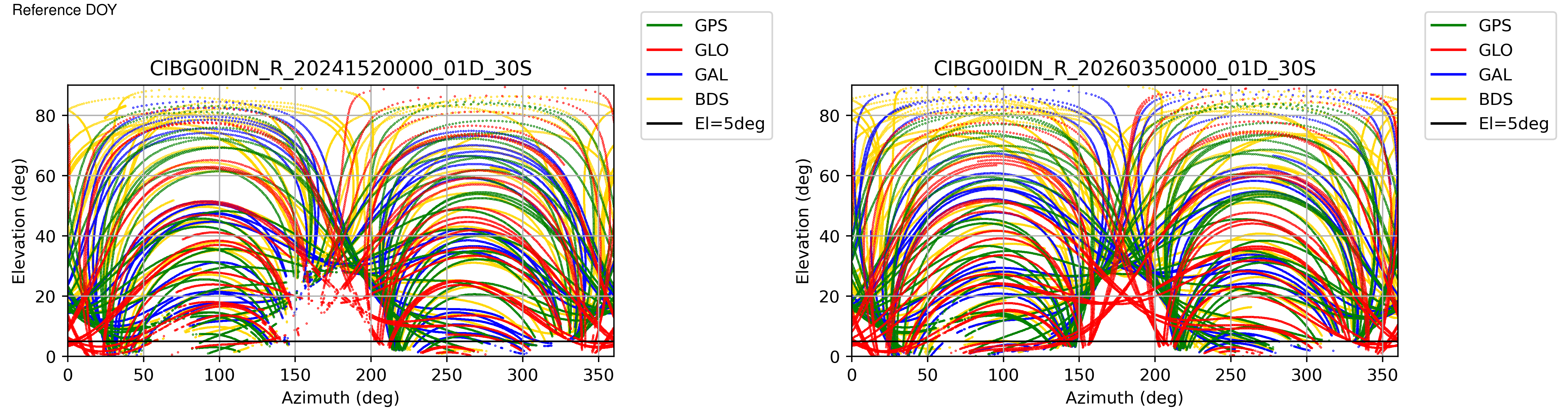

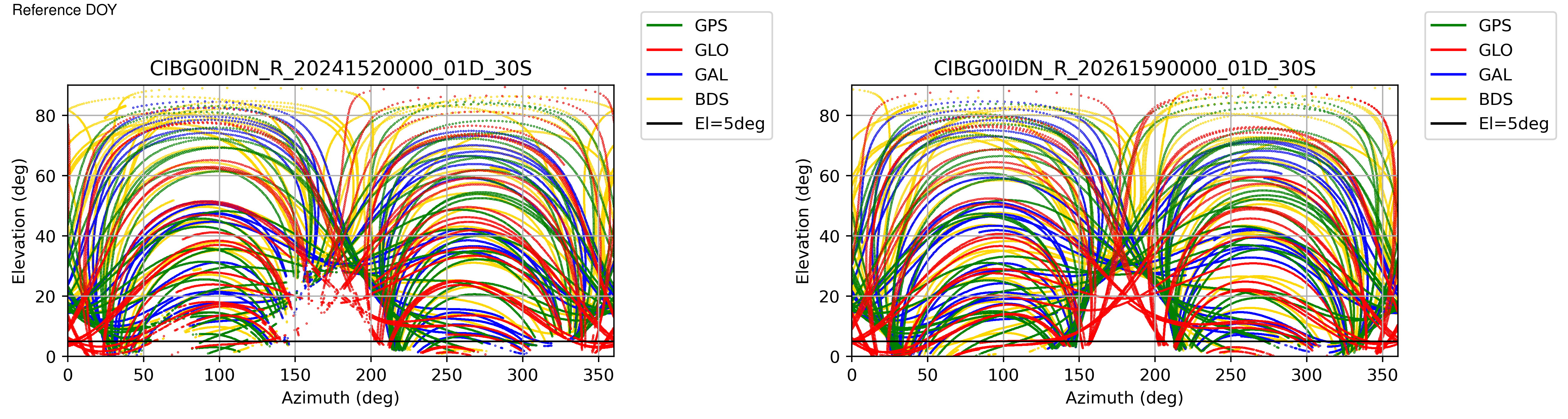

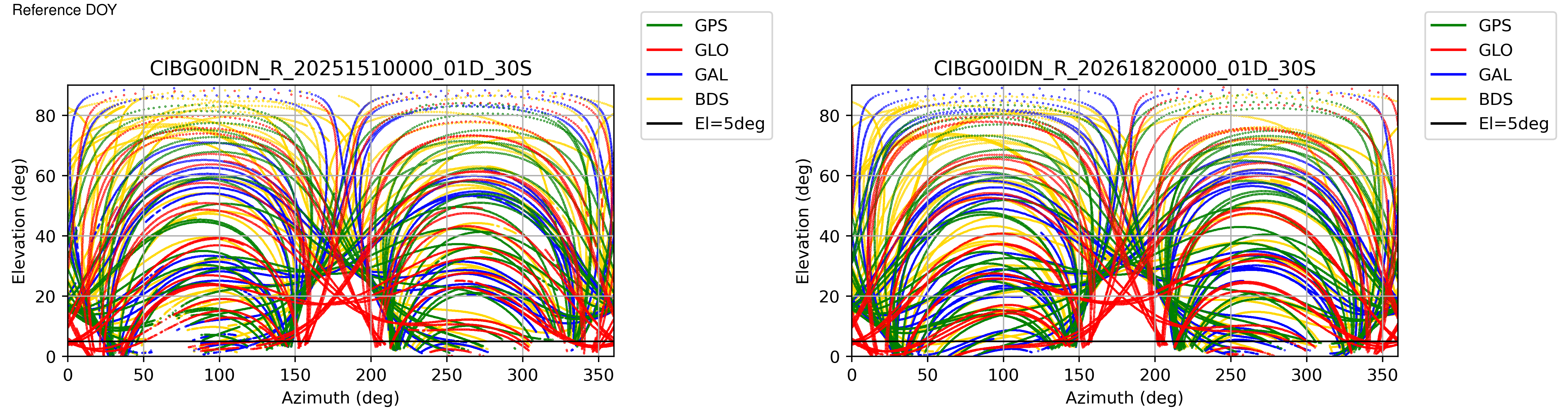

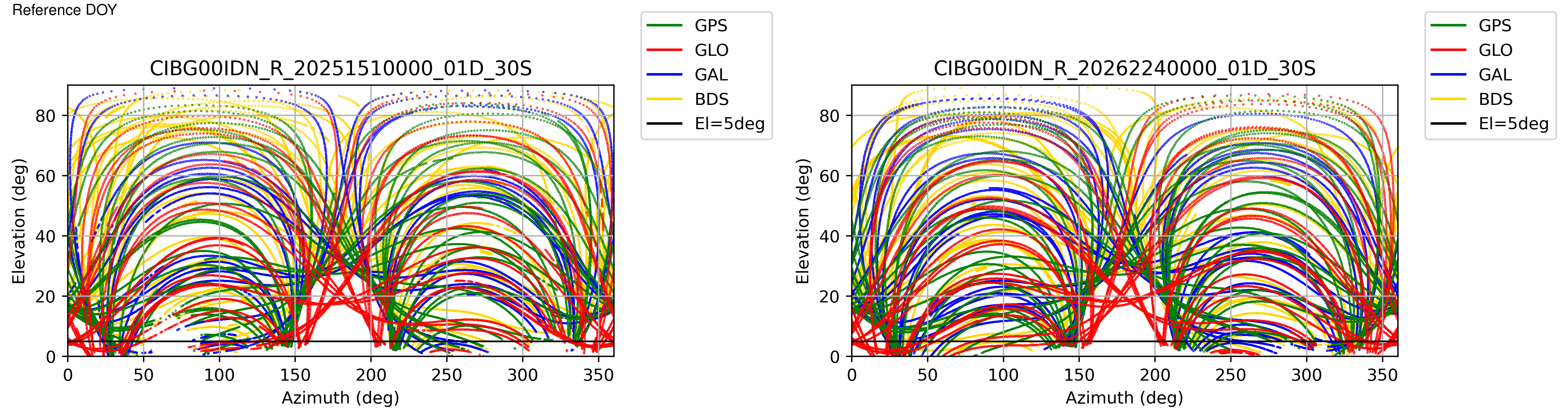

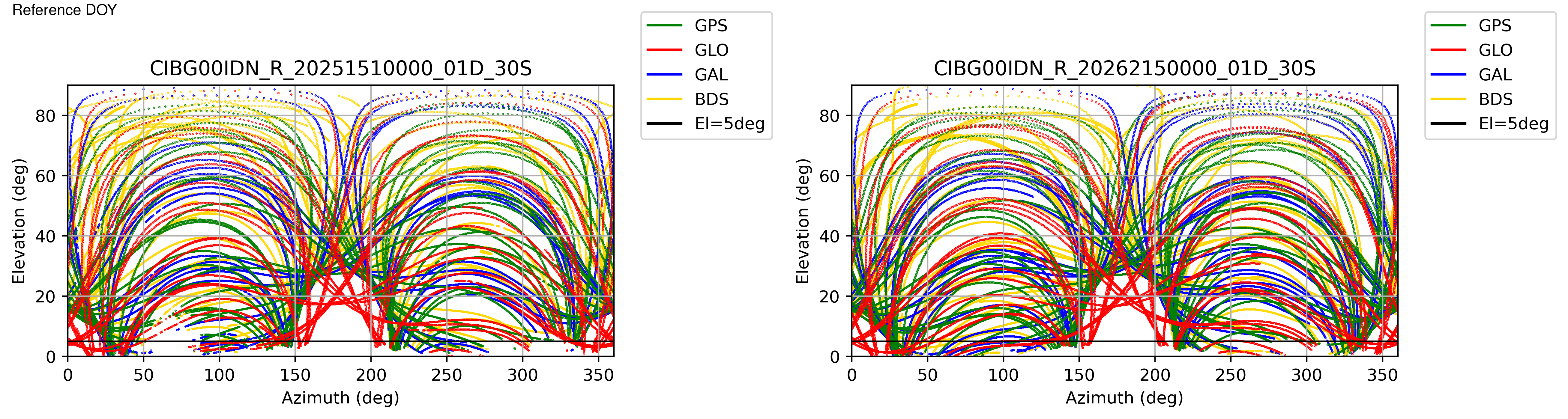

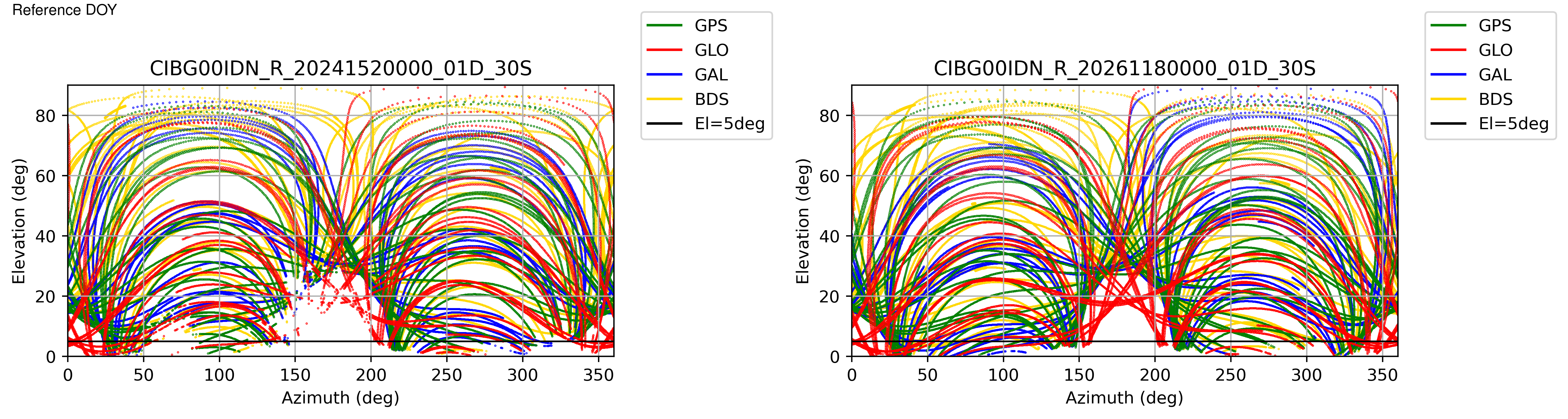

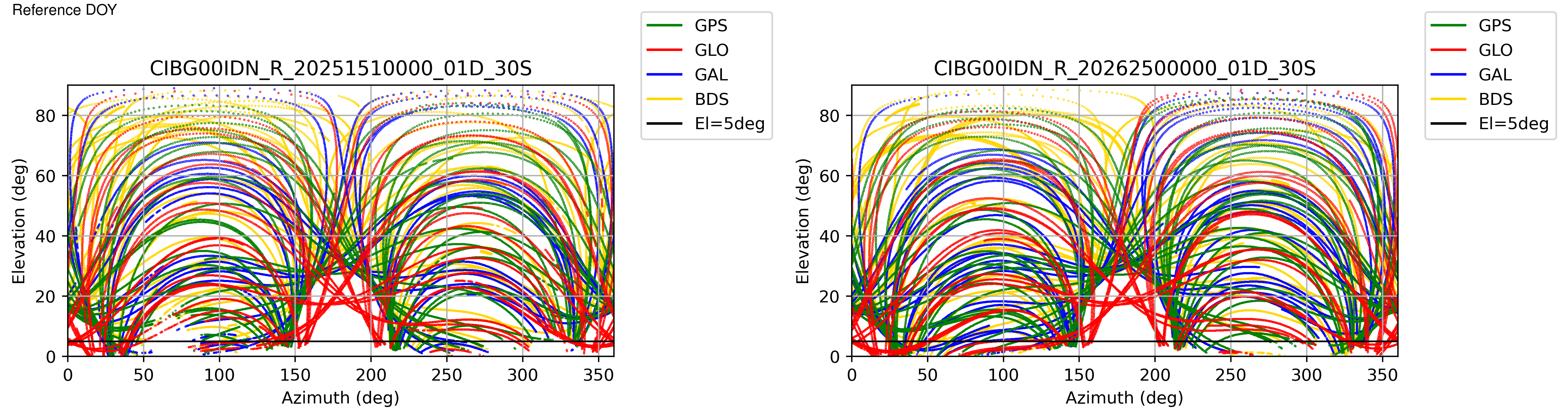

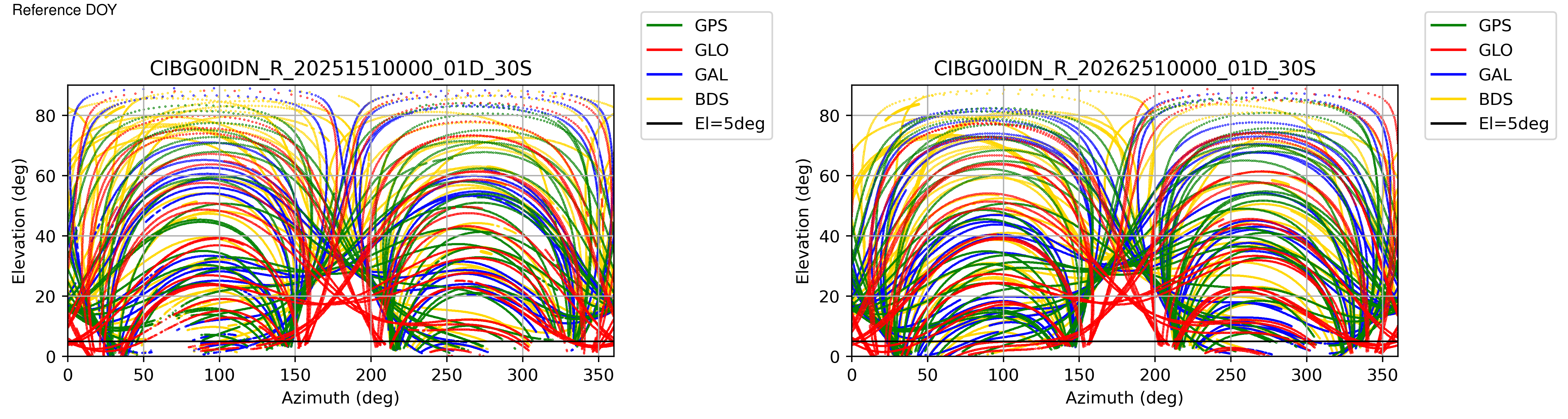

Site quality
